High Precision Cable Testing

Innovative cabling and component test solutions designed for Laboratory, Manufacturing, and Field Use applications.

With AEM's network infrastructure solutions, you can easily certify Ethernet and fiber optic cabling for various smart building technologies.

Validate your cabling and receive a statement about its quality.

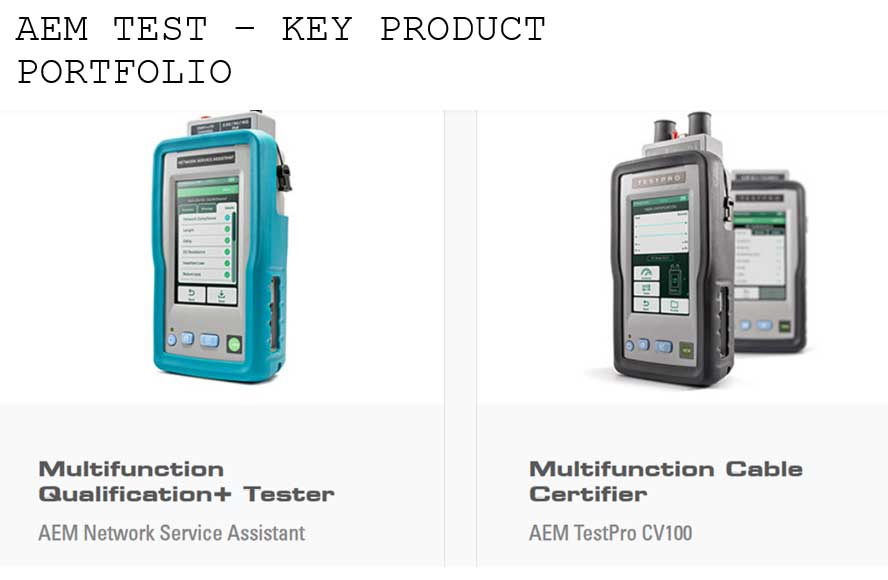

AEM TESTPRO CV100

Cable certifier with a modular platform


The award-winning multi-function cable certifier has been specifically designed for the modern network infrastructure of smart buildings. It offers the most feature-rich test platform available today and the modular platform allows customization to any application required.

Copper Certification CAT5e - CAT8

Testing & Certification
  • TestPro supports testing and certification for network deployments up to 40 Gigabit Ethernet for Cat3 through Cat8.2 or Class I/II cabling system.
  • The electrically centered test plug assures the Level 2G/VI accuracy required to support field testing to Cat 8 / Class I/II, and actually exceeds the 2000 MHz requirement, to offer a 3000 MHz platform

Future Proof
  • The 3000 MHz frequency range provides investment protection as standards evolve, the test platform is ready.


Single Pair Ethernet ( SPE )
  • Single Pair Ethernet / 10BASE-T1L, is the perfect solution for low bandwidth, long distances, secure powered bidirectional communications
  • With the advent of Single Pair Ethernet (SPE) however, reach and applications will extend even further.
  • Single Pair Ethernet can support communication and power delivery up to 1 km.
  • Since many IoT devices were designed for Ethernet, SPE eliminates the need for protocol conversion, additional controllers, and more complex cabling required for legacy non-Ethernet architecture.
  • TestPro is the only tester to offer SPE certification testing complaint to the TIA 568.5 standard
  • TestPro covers the requirements for both high-speed short reach SPE links, and long distance SPE links with the same device.

AEM Network Service Assistant ( NSA)

Multifunction Qualification+ Tester

No longer do users have to decide between the purchase of a qualification network tester or a cable certifier, the Network Service Assistant bridges the gap, with a Qualification+ hybrid solution featuring Certi-Lite.

Certi-Lite
Cable Test for CAT3 - CAT6A
  • Certi-Lite performs an ANSI/TIA 1152-A compliant, single ended cable test for CAT3 – CAT6A, with a simple Pass/Fail indication.
  • This provides you with assurance of cabling link integrity to support your requirements.
  • The NSA performs this test using a small passive termination at the remote end, which helps to significantly reduce the overall cost of the test equipment when compared to traditional cable certifiers

Report Generation
  • Test results can be sent to TestDataPro Cloud test results repository via wired or wireless connection
  • Results can also be saved to memory for later upload to the PC based version of TestDataPro results management software

Advanced Link Identification ALI

Save Time and Resources
  • AEM takes link identification to the next level with Certi-Lite capable numbered remote IDs
  • Unlike your typical “dumb” remote ID’s that simply tell if you have connected to number 1,2,3 and so on, AEM remote ID’s are smart, and are capable of supporting Certi-Lite
  • This allows you to qualify up to 8 cabling lines in a row for different IEEE applications or up to 10 Gig transmission rates from the patch panel using multiple remote IDs from the ALI system

Power Over Ethernet Validation
Comprehensive Test Functionality
  • NSA has the ability to validate Real Power load at the jack where and end device will be deployed.
  • NSA emulates a Powered Device (PD), such as a WAP or Camera by setting it to the specific standard applicable to that device.
  • NSA negotiates with the Power Source Equipment (PSE) to request information about the switch and the highest level of power load from the PSE for the selected standard.
  • For those pesky intermittent power issues, NSA can monitor power load over time. This allows you to monitor live for any power fluctuation that drops below the required level threshold.Equipment (PSE)



TESTPRO & NSA - Wired and Wireless Network Connectivity Testing

BASE-T Wired Ethernet Connection Details
  • Perform Network Discovery to see what’s behind the jack.
  • Switch detail including slot/port/VLAN.
  • Display list of IP addresses for connected devices.
  • Select any IP address to view that device details, MAC address, and more.
  • View LAN details such as Gateway, Subnet Mask, DHCP Server.
  • Generate traffic to any desired IP address.
  • Perform Trace Route to see the connection path and intermediate hop delays for bottlenecks.
  • Use Ping to verify point-to-point or Internet connectivity and response time.

WI-FI Ethernet Connection
  • NSA’s auto-discovery will display all detected SSID’s and their associated RSSI (received power level). This is useful in determining if the Wi-Fi network to which the user is trying to connect has sufficient signal strength.
  • Determine Wi-Fi “dead zones” by roaming to checking RSSI values in different locations.
  • Connect to any SSID using the appropriate credentials for that network.
  • Use Ping to verify point-to-point connectivity or out to the Internet by selecting pre- defined or custom website URLs and see latency details
